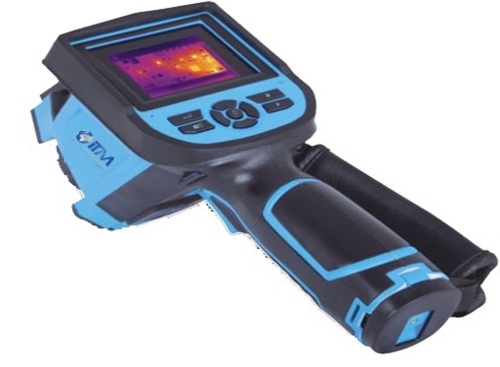

iTM – Ameyo-1

Detectors 25um 160*120
Measurement Range from +20°C ~ +50°C
User selectable Auto or manual level and span control
Hot or Cold temperature spot measurement
4 removable spot measurements
High temperature Alarm setting
T Reflect - Reflected temperature compensation
2X digital zoom
Video Output – NTSC or PAL
3 Areas measurements
2 lines measurements
Image storage via TF card
CMOS visible image and storage
Audio recording
Isotherm Alarm


Detector type Un-cooled FPA micro-bolometer
Fully multi-coated optics/ Superior resolution
Resolution 384*288
Detector pitch 25µm
Frame rate 50HZ
NETD =100mk
Focus Range Athermalized,focus-free
Lens 9mm, 18mm, 37mm, 50mmm

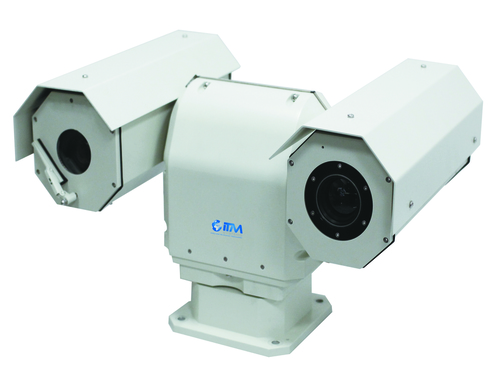

CCD camera Resolution Total pixels 795(H)x596(V),Effective pixels 752(H)x582(V)
Imaging Device 1/4?Super HAD CCD
Lens 3.66-91.36mm(F1.65-3.0),25x optics,16x digital
Horizontal Resolution Color:600TV lines, B/W:700TV lines
PTZHorizontal rotation degrees 0°~360° continuous rotation
