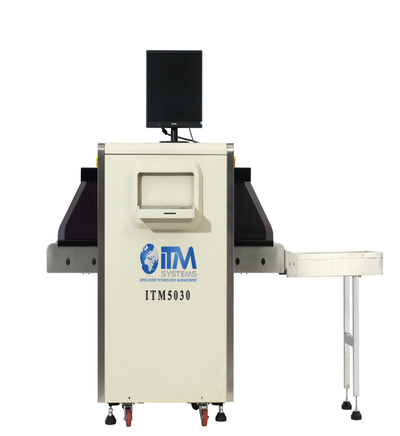

ITM-SF5030A

  • L-shaped array detector 24 bit Single energy
  • Tunnel Size : 500（W）×300（H）mm
  • Power Requirement: 220V AC (±10%) 50±3Hz
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 100 kg
  • Single inspection dosage: < 1.32μGy
  • Wire Resolution: 40AWG
  • Steel Penetration: 10mm
  • Anode Voltage:80KV（adjustable）
  • Angle: 60°
  • Beam Direction: Upward
  • Generator cooling/working periods: Sealed oil bath with forced air/100％ 19 inch High-resolution color LCD display

ITM-SF5030C

  • L-shaped array detector 24bit Multi Energy
  • Tunnel Size : 500（W）×300（H）mm
  • Power Requirement: 220V AC (±10%) 50±3Hz
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 150 kg
  • Single inspection dosage: < 1.32μGy
  • Wire Resolution: 40AWG (0.0787mm metal line)
  • Steel Penetration: 38mm
  • Anode Voltage:100-160KV（adjustable）
  • Angle: 80°
  • Beam Direction: Upward
  • 19 inch High-resolution color LCD display Can distinguish organic and inorganic

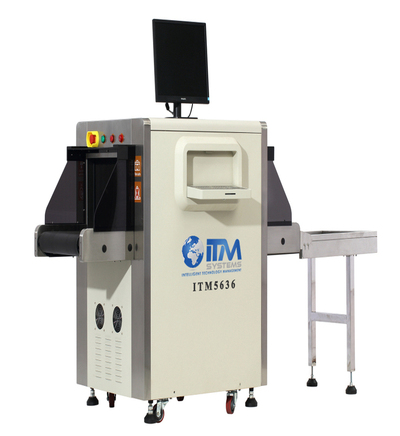

ITM-SF5636

  • L-shaped array detector 24bit Multi energy
  • Tunnel Size : 560（W）×360（H）mm
  • Power Requirement: 220V AC (±10%) 50±3Hz
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 150 kg
  • Single inspection dosage: < 1.01μGy
  • Wire Resolution: 40AWG
  • Steel Penetration: 40mm
  • Anode Voltage:80-160KV（adjustable）
  • Angle: 80°
  • Beam Direction: Upward
  • 19 inch High-resolution color LCD display Can distinguish organic and inorganic

ITM-IV260: Flexible 7" 1080P

  • Detector zone: 6/12/18 Zones (Option)
  • Sensitivity: 0-255 adjustable
  • Display way: Small LCD screen with 6-digits counter
  • Sound & LED alarm: Both Side LED indicator
  • Power supply: AC85V-264V / 50-60Hz
  • Detecting speed: up to 100 passenger/ min
  • Working Frequency: Multi-Frequency can be adjusted
  • Operation Temperature: -20℃--+55℃
  • Backup battery: Approx 4 hours (Option)

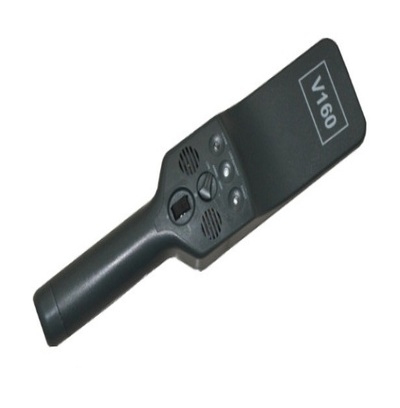

ITM-IV160: HHM Detector

  • Sensitivity: 4 levels Sensitivity: Low, Normal,High,Ultra-high
  • Power: Dedicated 7.4V lithium battery, 9V Ni-MH batteries
  • Ultra-long standby: about 100 hours long standby time, dedicated lithium up to 500 hours
  • Charger: optional
  • Operating temperature:-20℃～+65（relativehumidity:0~95%）
  • Material: shock, impact resistant ABS plastic

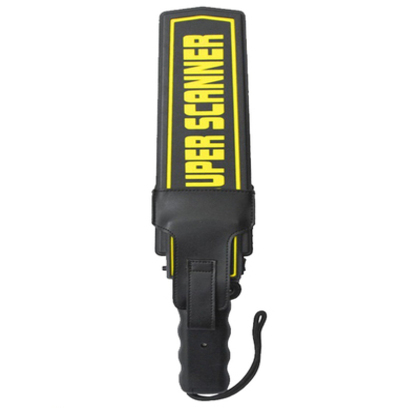

ITM-ID-3003B1 HHM Detector

  • Power voltage: standard 9V battery
  • Operating voltage: 7V-9V
  • Operating Current: <50mA
  • Alarm terms: sound (vibration) and light alarm simultaneously
  • Alarm Sound: ≥75dB(A)
  • Waterproof: IP31
  • Operation Frequency: 40KHz
  • Housing material: ABS- black
  • High Sensitivity:Pin: 30-60mm 64-Pistol : 180-195mm; 6 inch Knife: 160-180mm; Steel ball with 20mm diameter: 120mm
